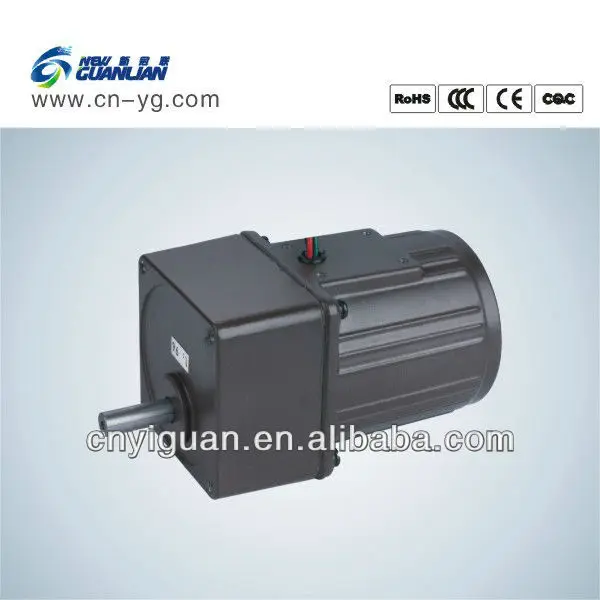

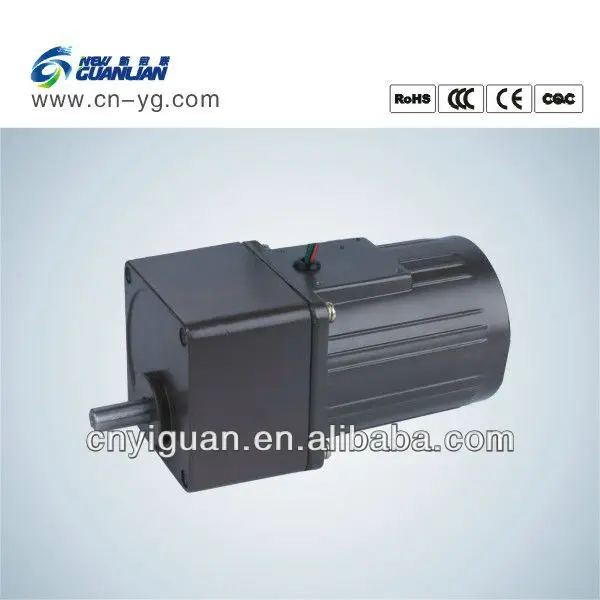

New Guanlian YN70 20 watt geared motor

FOB Reference Price:Get Latest Price
$20.00 - $30.00 / Piece | 200 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
New Guanlian
Model Number:
YN70
Type:
Asynchronous Motor
Frequency:
50Hz
Output Power:
15w/20w
Protect Feature:
Drip-proof
Phase:
Single-phase
Certification:
CCC, CE, ROHS
AC Voltage:
110/220v
Product Certification certification
CE Certified.
Valid from 2016-05-11 until 2049-12-31
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
20pcs in one carton
Port
Ningbo

Our service

1 Any email or trademanager inquires will be replied within 24 hours



2 Normal samples can be offer very quickly(within 3-10 days)



3 Customized service for kind of motor according to your requirement



4 Professional Technical support and After-sale service



Our advantages



1) High Quality Guarantee: 20 years experiences in this field makes us have mature manufacturing process, Most of motors have CE, ROHS marks.



2) Competitive Price: We have a very high competitive ability of the list prices based on low cost labour force in China.



3) Good Service: We are professional and with good attitude, We will response with our customer within 24 hours(Holiday excepted), So you don't need way about can't not find the person when have agent things.



4) On Time Delivery: The delay delivery always are a headache problem for most of buyers, Our technical team and sales team make us can promise about 95% delivery on time.



5) Customized requirement: Beside normal products, We also design the motors according to customer requirement. Meanwhile our MOQ is very low, (Even 1PC for some motors).



Delivery terms

1.T/T in advance will be our popular payment terms



2. We'd like to send you some samples for your further inspection .



3. We have detailed specifications. If you are interested in it, please write to me



Note

1.Color&length of conducting wire can be made according to the requirement of users.



2.The output shaft can be made according to The consumers need.



3.Working voltages and frequencies can be made as per user' s requirements.


YN70-15W Allowable Torque on Gearbox



Frequency

50Hz

60Hz

Reduction Ratio

Output Shaft Speed

Allowable Torque

Output Shaft Speed

Allowable Torque

N.m

Kgf.cm

N.m

Kgf.cm

3

483

0.3

3.1

580

0.3

2.6

5

290

0.5

5.2

348

0.4

4.3

9

161

0.9

9.3

193

0.8

7.7

12.5

116

1.3

12.9

139

1.1

10.7

15

96.7

1.5

15.5

116

1.3

12.9

20

72.5

2.0

20.7

87.0

1.7

17.2

23

58.0

2.5

25.9

69.6

2.1

21.5

30

48.3

3.0

31.1

58.0

2.5

25.8

40

36.3

4.1

41.4

43.5

3.4

34.4

50

29.0

5.1

51.8

34.8

4.2

43.0

60

24.2

6.1

62.1

29.0

5.1

51.5

70

20.7

7.1

72.5

24.9

5.9

60.1

90

16.1

9.1

93.2

19.3

7.6

77.3

100

14.5

10.1

104

17.4

8.4

85.9

120

10.4

14.2

145

12.4

11.8

120

150

8.1

18.3

186

9.7

15.2

155

180

4.0

24.5

250

4.8

20.3

208

YN70-20W Allowable Torque on Gearbox



Frequency

50Hz

60Hz

Reduction Ratio

Output Shaft Speed

Allowable Torque

Output Shaft Speed

Allowable Torque

N.m

Kgf.cm

N.m

Kgf.cm

3

483

0.4

4.1

580

0.3

3.4

5

290

0.7

6.9

348

0.6

5.7

9

161

1.2

12.4

193

1.0

10.3

12.5

116

1.7

17.2

139

1.4

14.3

15

96.7

2.0

20.7

116

1.7

17.1

20

72.5

2.7

27.5

87.0

2.2

22.9

23

58.0

3.4

34.4

69.6

2.8

28.6

30

48.3

4.0

41.3

58.0

3.4

34.3

40

36.3

5.4

55.1

43.5

4.5

45.7

50

29.0

6.7

68.9

34.8

5.6

57.1

60

24.2

8.1

82.6

29.0

6.7

68.6

70

20.7

9.4

96.4

24.9

7.8

80.0

90

16.1

12.1

124

19.3

10.1

103

100

14.5

13.5

138

17.4

11.2

114

120

10.4

18.9

193

12.4

15.7

160

150

8.1

24.5

250

9.7

20.3

208

180

4.0

24.5

250

4.8

20.3

208



 YN70 LIST OF MOTOR CHARACTERISTICS

Moder of Motor



YN60-10

YN60-6

Output

W

15

15

20

20

Voltage

V

1ph110

1ph220

1ph110

1ph220

Frequency

Hz

50

50

50

50

Poles

P

4

4

4

4

Duty

S1

S1

S2 30min

S2 30min

Rated

Speed

r/min

1250

1250

1250

1250

Current

A

0.3

0.15

0.4

0.2

Torque

N.m

0.113

0.113

0.15

0.15

Kgf.cm

1.15

1.15

1.53

1.53

Starting

N.m

0.11

0.11

0.147

0.147

Kgf.cm

1.12

1.12

1.5

1.5

Capaciter/Ve

μF/VAC

5.0/250

1.2/450

6.0/250

1.5/450
